Where is My Sleep Data?

In September 2022 Apple released WatchOS 9 which included tracking sleep stages: REM, Core, Deep, Awake. Previously it just tracked whether you were asleep. I wanted to check on this data in the Health Export. This coincided with the period during which the Export stopped working, but once I was able to import it into R again, I was surprised that I didn’t see the sleep stages. The Export is a gigantic JSON file. My JSON skills are non-existent, and I generally have no success trying to look at the exported XML file directly.

I was puzzled at not seeing the sleep data because my experience has been that the Export includes everything described in the HealthKit documentation1.

It turns out that the detailed sleep data is in fact included the Export, and I just discovered why I was losing track of it. A friend asked me about a way he could export some detailed data so I took a look at the Health Auto Export app2. It’s not helpful for the kind of complete export that I’m interested in, but it did give me the opportunity to get all the detail for a single day. And there was the sleep data! I went back to my setup code and realized my problem.

Here are the wonky details: When I import the Export, I use XML:::xmlAttrsToDataFrame to covert it into a data frame, and the very next thing I did was use as.numeric to convert the Value column into a numeric. That’s where I lost track of the sleep data. In the Export, the Value data is almost always in the form of a number. (That’s true for almost 99% of the rows.) But for the sleep data, and a small number of other items, Value contains an alpha code rather then a numeric value. Sleep rows look like this:

Table 1: Sleep Data in the Health Export
startDate endDate value
2023-01-10 22:40:03 2023-01-10 22:55:03 HKCategoryValueSleepAnalysisAsleepCore
2023-01-10 22:40:03 2023-01-10 23:48:33 HKCategoryValueSleepAnalysisInBed
2023-01-10 22:55:03 2023-01-10 23:29:03 HKCategoryValueSleepAnalysisAsleepDeep
2023-01-10 23:29:03 2023-01-10 23:34:03 HKCategoryValueSleepAnalysisAsleepCore
2023-01-10 23:34:03 2023-01-10 23:48:33 HKCategoryValueSleepAnalysisAsleepREM
2023-01-10 23:48:33 2023-01-10 23:49:03 HKCategoryValueSleepAnalysisAwake
2023-01-10 23:49:03 2023-01-11 00:07:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-10 23:49:03 2023-01-11 01:01:03 HKCategoryValueSleepAnalysisInBed
2023-01-11 00:07:33 2023-01-11 00:24:33 HKCategoryValueSleepAnalysisAsleepDeep
2023-01-11 00:24:33 2023-01-11 00:44:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 00:44:33 2023-01-11 01:01:03 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 01:01:03 2023-01-11 01:01:33 HKCategoryValueSleepAnalysisAwake
2023-01-11 01:01:33 2023-01-11 01:26:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 01:01:33 2023-01-11 02:13:03 HKCategoryValueSleepAnalysisInBed
2023-01-11 01:26:33 2023-01-11 01:27:33 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 01:27:33 2023-01-11 02:13:03 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 02:13:03 2023-01-11 02:22:03 HKCategoryValueSleepAnalysisAwake
2023-01-11 02:22:03 2023-01-11 02:37:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 02:22:03 2023-01-11 02:38:33 HKCategoryValueSleepAnalysisInBed
2023-01-11 02:37:33 2023-01-11 02:38:33 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 02:38:33 2023-01-11 02:40:03 HKCategoryValueSleepAnalysisAwake
2023-01-11 02:40:03 2023-01-11 03:12:03 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 02:40:03 2023-01-11 03:25:03 HKCategoryValueSleepAnalysisInBed
2023-01-11 03:12:03 2023-01-11 03:25:03 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 03:25:03 2023-01-11 03:26:03 HKCategoryValueSleepAnalysisAwake
2023-01-11 03:26:03 2023-01-11 03:28:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 03:26:03 2023-01-11 06:05:03 HKCategoryValueSleepAnalysisInBed
2023-01-11 03:28:33 2023-01-11 03:32:03 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 03:32:03 2023-01-11 04:25:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 04:25:33 2023-01-11 04:57:33 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 04:57:33 2023-01-11 05:57:03 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 05:57:03 2023-01-11 06:05:03 HKCategoryValueSleepAnalysisAsleepREM
2023-01-11 06:05:03 2023-01-11 06:07:33 HKCategoryValueSleepAnalysisAwake
2023-01-11 06:07:33 2023-01-11 06:29:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 06:07:33 2023-01-11 06:29:33 HKCategoryValueSleepAnalysisInBed
2023-01-11 06:29:33 2023-01-11 06:30:03 HKCategoryValueSleepAnalysisAwake
2023-01-11 06:30:03 2023-01-11 06:33:33 HKCategoryValueSleepAnalysisAsleepCore
2023-01-11 06:30:03 2023-01-11 06:33:33 HKCategoryValueSleepAnalysisInBed

Each of these rows has a type of HKCategoryTypeIdentifierSleepAnalysis. The simplest way for me to handle this alphanumeric data in the value field is to move it to the type field because that fits with the way I’m analyzing other items. That way I can continue to assume that Value is numeric and analyze it that way.

To move the alpha values to type replace HKCategoryValueSleepAnalysisAsleepREM with HKCategoryTypeIdentifierSleepAnalysisREM, for example. Later in the input setup I strip out HKCategoryTypeIdentifier so that leaves me with SleepAnalysisREM in the type field. Other sleep related types are SleepAnalysisAwake, SleepAnalysisCore, and SleepAnalysisDeep.

Here’s a fragment from my code that imports the Health Export that shows how I repair the alpha items in the value data:

Code
# if non-numeric value, move the info to type
mutate(
  type = case_when(
    is.na(value) ~ type,
    !str_detect(value, "^HK") ~ type,
    TRUE ~ str_replace(value, "HKCategoryValue", "HKCategoryTypeIdentifier")
  ),
  value = ifelse(is.na(str_extract(value, "^HKCategory")),
                 as.numeric(value), NA_real_)),
  type = str_replace(type, "HKCategoryTypeIdentifier", "")

Other Items With Alpha Rather Than Numeric Data in the Value Field

In addition to the sleep data, I find alpha data in the value field in a few other cases:

  EnvironmentalAudioExposureEventMomentaryLimit (only 14 rows)
  AppleStandHourStood (28,187 rows)
  AppleStandHourIdle (17,365)

I haven’t tried to examine the StandHour in detail. In the Apple HealthKit documentation it provides the following explanation:

case stood
The user stood up and moved for at least one continuous minute during the sample.
case idle
The user didn't stand up and move for at least one continuous minute during the sample.

When I look at the line by line data for a single day I see at the beginning of every hour (when I am wearing the watch) a line for AppleStandHour with a value either of Stood or Idle, even when I’m asleep. Perhaps this is an easy way to see how much I’m wearing the Watch.

Two types seem like they should be recorded in a way similar to AppleStandHour: AppleExerciseTime and AppleStandTime, but they both have a numeric value. Recent data for AppleExerciseTime have a row for each minute that the Watch judges was exercise and has 1 in the value field. AppleStandTime has a row every five minutes during which there was any standing and has a value from 1 to 5 to indicate the minutes of time standing.

Sleep Stages

Now that I’ve located the sleep data in the Health Export, I can use it to do some basic plots.

Here are my sleep stages during a single night with the heart rate included.

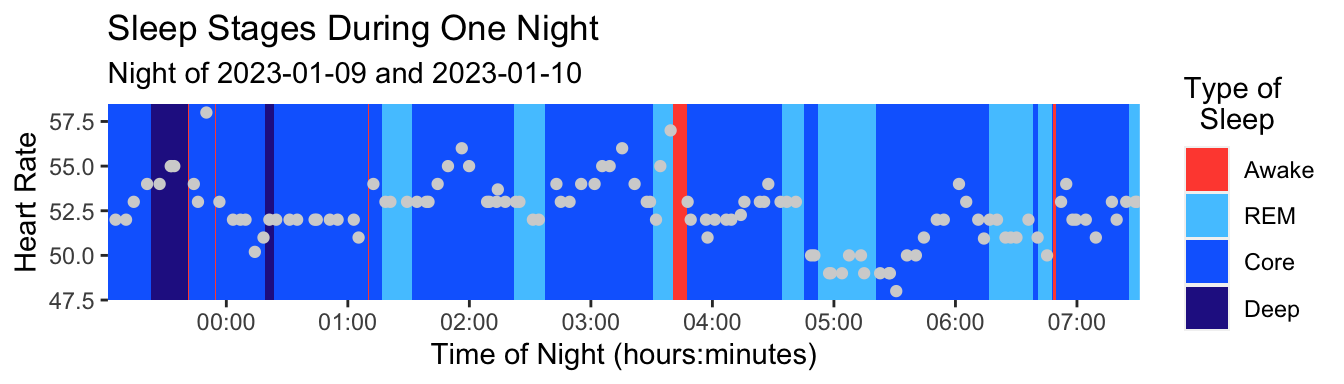

Figure 1: A Sample Night

a plot showing sleep stages by time of night also showing heart rate

This is a fairly typical night with a narrow range of heart rate values. It’s uncommon to see a Deep Sleep stage late in the night.

Next let’s look at a night in which there is more going on.

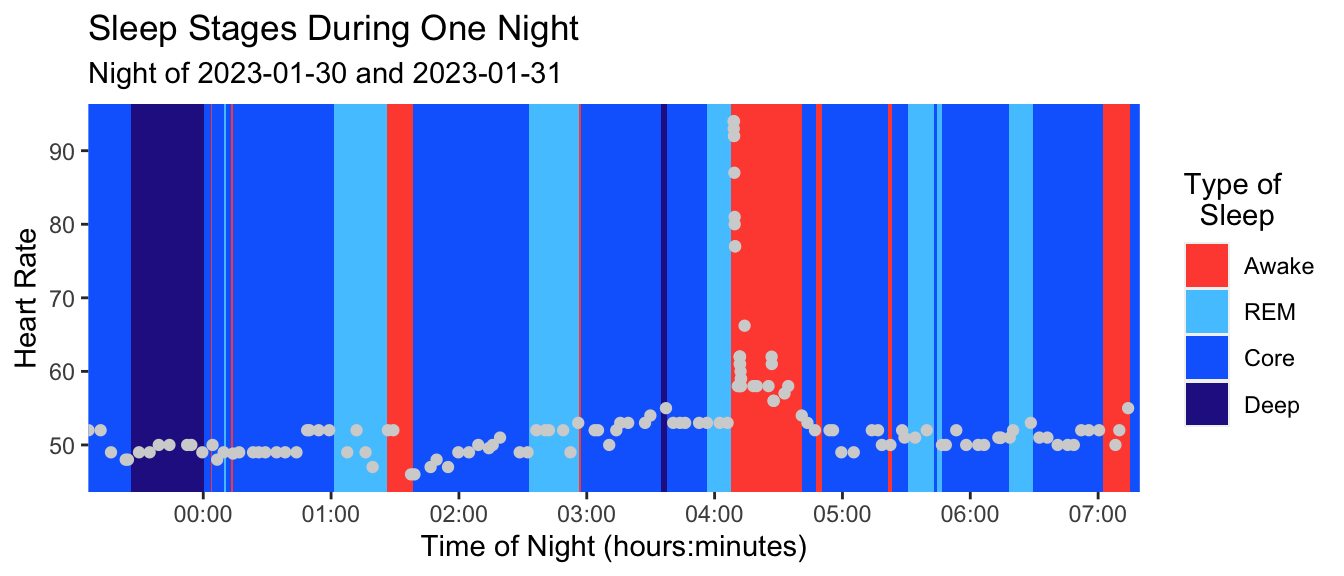

Figure 2: A Nightmare

On this night I had a nightmare that I actually remembered and noted down the next morning. I was being held captive by some sort of warlord. I knew that I was about to have my throat cut. Someone laid a hand on me…and I woke up. I felt my pulse racing (in the 90’s according to the plot). I deliberately stayed awake because sometimes when I go back to sleep right away after a dream the same dream continues. I didn’t care to continue this one! It’s interesting to clearly see the effect of the dream on my heart rate and how quickly the heart rate returned to a more normal level.

I did a bit of exploration of what other data I might include in a sleep plot. Here’s a version of the same plot which also includes data on respiration rate and heart rate variability. Only the heart rate seems interesting in this case. The elevated heart rate was quite brief. It shows only a brief period of REM sleep before I woke up after the nightmare.

Is a heart rate of 90 high or low in this context? During the dream I felt fear, but I wouldn’t say I was terrified. I didn’t feel what I would probably feel if the situation were real. I was disturbed, but it did not feel like a natural situation. If I were really terrified I think my heart rate would go even higher. As nightmares go, this was fairly mild.

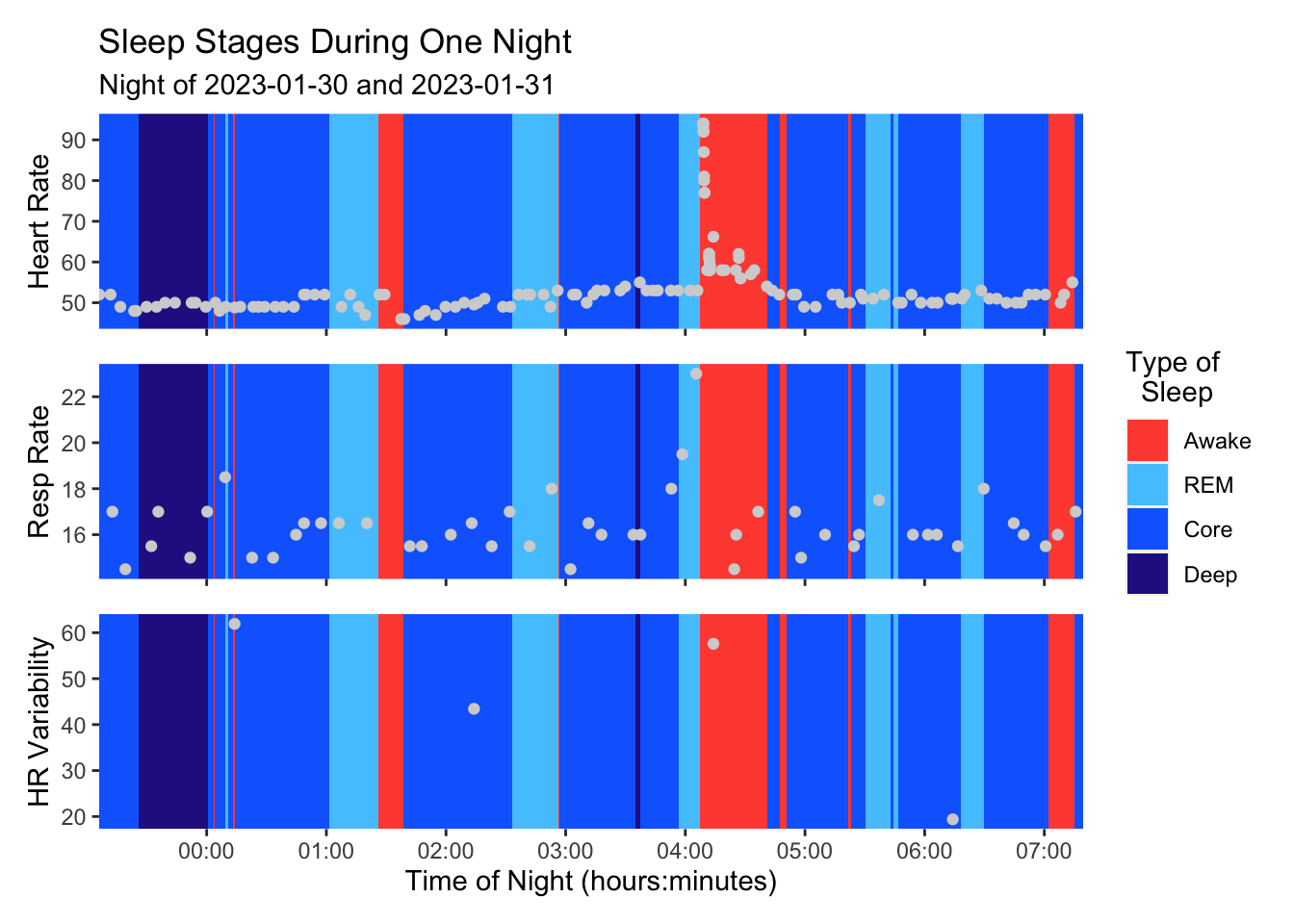

Figure 3: Showing Multiple Measurements During the Night

I created Figure 3 by using the patchwork package to combine multiple ggplots. It works well and gives me a lot of control over the appearance of the overall plot. The resulting function only displays a single night.

Another way to go is to use facet_wrap. I created a basic plot similar to the first one above. I created a function that would select a subset of nights and display them in a single plot using facet_wrap.

As an example, Figure 4 shows a recent week in January, 2023:

Code
sleep_facet_plot(data_for_sleep |> filter(week(night_date) == 3)) |>
  print()

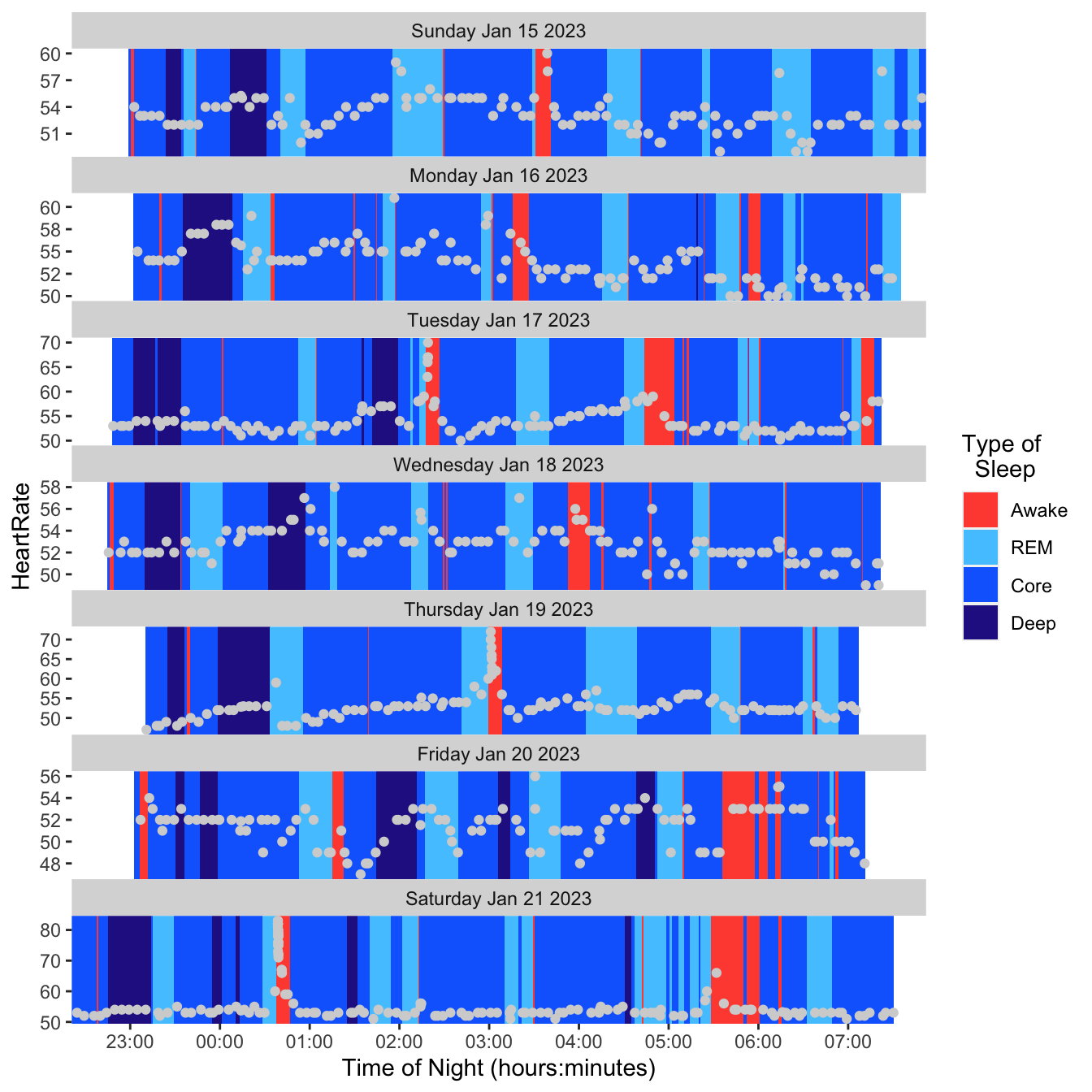

Figure 4: Showing Multiple Nights Using facet_wrap()

Conclusion?

I’ve found the sleep data in the Apple Health Export. Now what? For the time being I don’t plan to try to do anything with this data. As you can see from Figure 4, I don’t have any trouble getting enough sleep. Perhaps if I read some more about sleep stages in the future I might like to go back to my own data. For example, in the Apple documentation I read that “deep sleep” tends to happen early in the night. My data seems to agree, although I haven’t looked at it systematically. Perhaps it would be interesting to see what’s different about nights where there’s a large “deep sleep” block in the second half of the night. But for now I’ve satisfied the itch to at least be able to locate the sleep data in the Health Export.
